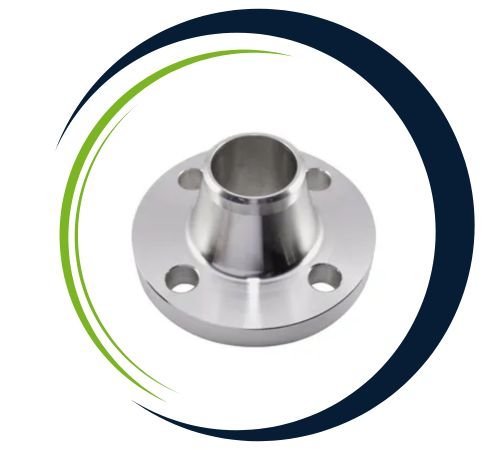

Vishal Flanges stands out as a top-notch manufacturer and supplier of Stainless Steel Weld Neck Flanges, proudly based in Delhi, India. They specialize in providing high-quality piping solutions tailored for high-pressure and high-temperature applications. These flanges feature a long tapered hub and are butt-welded to the pipe, ensuring excellent stress distribution and structural integrity. Crafted from premium stainless steel grades like SS 304, 304L, 316, and 316L, they boast impressive corrosion resistance and durability, making them perfect for critical service conditions. Vishal Flanges ensures that their weld neck flanges meet international standards such as ASME, ANSI, and DIN, catering to the petrochemical, power, marine, and industrial sectors.
Stainless Steel Weld Neck Flanges are normally manufactured from alloys like 304, 316, or 317 stainless steel with a composition high in chromium (18-20%) and nickel (8-12%) and traces of molybdenum to provide enhanced corrosion resistance. They have superior strength and resistance against oxidation, corrosion, and pitting in both acidic and alkaline conditions. Mechanical properties comprise a significant tensile strength of 520-750 MPa, and they come with a yield strength of 205-290 MPa. Owing to exceptional durability coupled with high-temperature resistance, they are specially suited for critical applications in chemical, oil & gas, and power generation industries.
Stainless Steel Weld Neck Flanges are generally made from SS 304, 304L, 316, and 316L, which are austenitic stainless steels containing 18–20% chromium, 8–14% nickel, and, for 316/316L, 2–3% molybdenum. These elements grant exceptional corrosion resistance, especially in acidic and chloride-rich environments. The mechanical properties include a tensile strength ranging from 485–620 MPa and a yield strength of 170–310 MPa, depending on the specific grade. These flanges are highly resistant to thermal expansion, pressure changes, and mechanical stress, making them ideal for demanding, long-term use in harsh conditions.
| Specification Of : | Stainless Steel Weld Neck Flange |
|---|---|
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Manufacturer Of Standard Dimensions | EN-1092 Flange, ASME B16.48 Flange, API605 Flange, BS4504 Flange, EN1092 Flange, UNI Flange, ISO Flange, API7S-43 Flange, ANSI/ASME B16.5 Flange, API7S-15 Flange, MSS S44 Flange, IS 2062 Flange, ASME B16.36 Flange, DIN Flange, AWWA C207 Flange, B16.47 Series A & B Flange, BS1560-3.1 Flange, ISO70051 Flange, API Flange. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Wrought Iron, Inconel, Mild Steel, Stainless Steel, Hastelloy, Cast Iron, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Size | (1/2″) To (48″) |
| Manufacturing Process |
|
| Other Type Of Flange | Forged/ Plate/ Threaded |
| Application | Oil And Gas Industry Power Plants Industry Food Processing And Manufacturing Waterworks Systems Fossil Fuel Power Plants Nuclear Power Application Municipal Pipe Systems |
Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of Stainless Steel Weld Neck Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Stainless Steel Weld Neck Flanges are widely utilized in applications requiring strong, resilient, and leakage-tight joints under high-temperature and high-pressure conditions. They have extensive application in the oil and gas, petrochemical, chemical processing, power plant, and marine industries. They are ideally suited for piping applications requiring a resilient and secure joint, especially in severe applications like heat exchangers, pressure vessels, and refinery pipelines. Their construction, which involves good stress distribution, renders them apt for application in systems where they may be subjected to vibration, thermal growth, or alternating pressure. Stainless Steel Weld Neck Flanges play a critical role in maintaining system integrity and sustained performance.
| ASME/ANSI B 16.5 | Welding Neck Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Stainless Steel Weld Neck Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Stainless Steel Weld Neck Flanges are extensively utilized in high-pressure and high-temperature piping systems due to their reliable, butt-welded connection. They play a crucial role in oil & gas pipelines, chemical processing facilities, refineries, and power generation plants, effectively handling steam, gas, and corrosive fluids. The tapered neck design enhances their strength, making them suitable for high-stress environments. Additionally, these flanges find applications in marine settings, offshore platforms, heat exchangers, and the pharmaceutical industry, where structural integrity and corrosion resistance are paramount. Their precision fit and durability ensure they meet the rigorous demands of various industries.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
