Vishal Flanges, based in Delhi, India, is a reputable manufacturer and supplier of GOST 33259 flanges. Known for their precision engineering and durability, our flanges are crafted to meet the strict standards of various industrial sectors. Following the GOST 33259 standard, these flanges ensure outstanding performance, reliability, and safety in critical applications. With cutting-edge manufacturing capabilities and a dedicated team, Vishal Flanges is devoted to providing top-notch products that fulfill the needs of clients both domestically and internationally.
GOST 33259 flanges are made from high-quality materials like carbon steel, alloy steel, or stainless steel, tailored to the specific application requirements. These flanges boast remarkable tensile strength, toughness, and resistance to corrosion. They are engineered to withstand high-pressure and high-temperature conditions, guaranteeing durability and reliability. With precise dimensional accuracy and excellent mechanical stability, GOST 33259 flanges are built to meet the demanding needs of various industrial environments.
| Standard | GOST / ГОСТ 33259 |
| Size | 1/2″ to 48″ |
| UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
| Class | 300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS |
| EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
| Flanges Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Value Added Services | CNC Machining, Customised Flanges |
| Outer diameters | 1/2” to 24” |
| Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
| JIS | 5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K |
| Flanges Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flanges Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Standards Provided By Manufacturer | BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ANSI/ASME B16.5/16.36/16.47A/16.47B, EN1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44 |

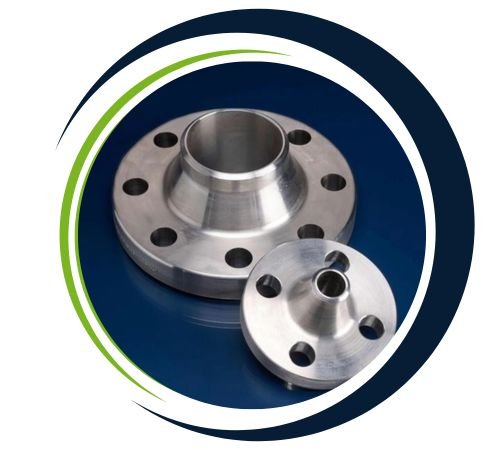

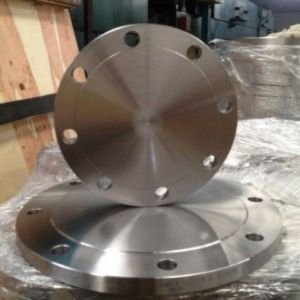

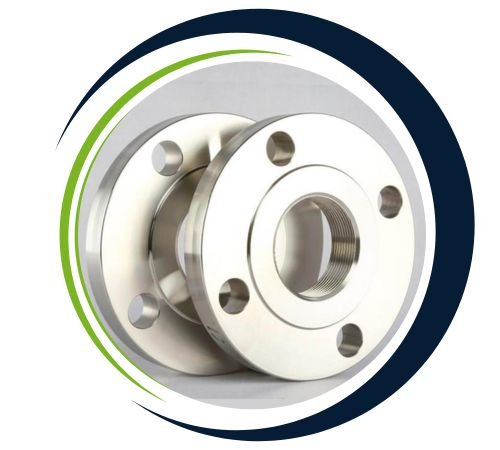

Vishal Flanges a leading supplier in Delhi, India, offers an extensive selection of GOST 12821-80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Vishal Flanges’ GOST 33259 flanges are extensively used in industries such as oil and gas, chemical processing, power generation, and marine. They are perfect for connecting pipelines, valves, and machinery in systems that require high-pressure and temperature resistance. These flanges are especially suited for both onshore and offshore applications, ensuring secure and leak-proof connections. With their versatility and adherence to international standards, GOST 33259 flanges offer reliable solutions for critical operations across a wide range of industrial sectors.
| Diameter conditional (DN), millimeter | O.D. Of (D), millimeter | Diameter of spacing (D0), millimeter | Diameter internal (dB), millimeter | Flange wall thickness (b), millimeter | fastener Size (d0), millimeter | mounting holes Number (n), pcs | Weight of one flange, kilogram |
| 15 | 80/95 | 55/65 | nineteen | 10/10 | 11/14 | 4/4 | 0.3 / 0.5 |
| 20 | 90/105 | 65/76 | nineteen | 12/12 | 11/14 | 4/4 | 0.5 / 0.7 |
| 25 | 100/115 | 75/85 | nineteen | 12/12 | 11/14 | 4/4 | 0.6 / 0.9 |
| 32 | 120/135 | 90/100 | 39 | 13/14 | 14/18 | 4/4 | 1.1 / 1.4 |
| 40 | 130/145 | 100/110 | 46 | 13/15 | 14/18 | 4/4 | 1.2 / 2 |
| 50 | 140/160 | 110/125 | 59 | 13/15 | 14/18 | 4/4 | 1.3 / 2.1 |
| 65 | 160/180 | 130/145 | 78 | 13/17 | 14/18 | 4/4 | 1.6 / 2.8 |
| 80 | 180/195 | 150/160 | 91 | 15/17 | 18/18 | 4/4 | 2.4 / 3.2 |
| 100 | 205/215 | 170/180 | 110 | 15/19 | 18/18 | 4/8 | 2.8 / 4 |
| 125 | 235/245 | 200/210 | 135 | 17/21 | 18/18 | 8/8 | 3.8 / 5.4 |
| 150 | 260/280 | 225/240 | 161 | 17/21 | 18/22 | 8/8 | 4.4 / 6.6 |
| 200 | 315/335 | 280/295 | 222 | 19/21 | 18/22 | 8/8 | 5.9 / 8 |
| 250 | 370/390 | 335/350 | 273 | 20/23 | 18/22 | 12/12 | 7.6 / 10 |
| 300 | 435/440 | 395/400 | 325 | 20/24 | 22/22 | 12/12 | 10.2 / 13 |
| 350 | 485/500 | 445/460 | 377 | 22/24 | 22/22 | 12/16 | 12.6 / 16 |
| 400 | 535/565 | 495/515 | 426 | 24/26 | 22/26 | 16/16 | 15.2 / 21 |
| 500 | 640/670 | 600/620 | 530 | 25/28 | 22/26 | 16/20 | 19/28 |
| 600 | 755/780 | 705/725 | 630 | 25/31 | 26/30 | 20/20 | 26/40 |
| 800 | 975/1010 | 920/950 | 820 | 27/37 | 30/33 | 24/24 | 46/79 |
| 1000 | 1175/1220 | 1120/1160 | 1020 | 31/43 | 30/33 | 28/28 | 64/118 |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
