Vishal Flanges is a reputable manufacturer and supplier of top-notch Titanium Grade 2 Flanges, proudly based in Delhi, India. With a keen emphasis on innovation and precision engineering, the company delivers flanges that adhere to international standards for strength, corrosion resistance, and durability. The Titanium Grade 2 Flanges from Vishal are highly sought after in the chemical, marine, aerospace, and medical sectors, thanks to their outstanding performance even in challenging environments. Supported by a state-of-the-art facility and a talented workforce, Vishal Flanges guarantees timely deliveries, tailored solutions, and unwavering quality, making it a go-to choice for titanium flange needs both in India and around the world.
Titanium Grade 2 Flanges are primarily made of titanium (≥ 98.5%), with trace amounts of iron, oxygen, carbon, nitrogen, and hydrogen. This commercially pure grade strikes a fantastic balance between moderate strength and exceptional corrosion resistance. Their mechanical properties boast a tensile strength of about 344 MPa, yield strength of 275 MPa, and an elongation of 20%. With a density of 4.51 g/cm³ and a melting point near 1665°C, these flanges are lightweight, weldable, and perfect for applications that require both formability and corrosion protection.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

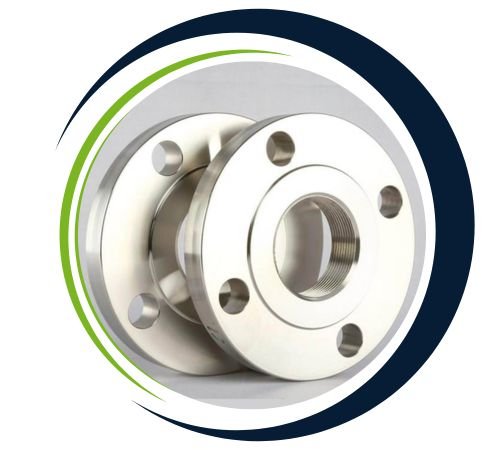

Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of Titanium Gr 2 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Grade 2 flanges find extensive application in industries where high corrosion resistance, light weight, and good weldability are required. Typical applications are in chemical processing facilities, desalination plants, marine equipment, and offshore oil and gas production. They are also used in heat exchangers, condensers, and piping systems that process corrosive media like acids and chlorides. Grade 2 titanium flanges are used in the pharmaceutical and medical fields for their biocompatibility. They are also utilized in power generation and aerospace industries for components that need average strength, seawater resistance, and long operating life in corrosive environments.
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
Yes, we offer custom sizes for Titanium Gr 2 Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Titanium Grade 2 Flanges find extensive use in industries where high corrosion resistance, low weight, and durability are essential. In the chemical processing field, they are perfect for piping systems that handle acidic or chlorinated substances. The marine industry relies on them for seawater systems, desalination plants, and offshore equipment due to their impressive resistance to saltwater corrosion. In aerospace, they are utilized in airframes and fuel systems. The medical and pharmaceutical sectors appreciate Titanium Grade 2 for its biocompatibility in surgical and implant devices. Additionally, power generation and heat exchanger systems also benefit from these flanges, thanks to their dependable performance under extreme conditions.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
