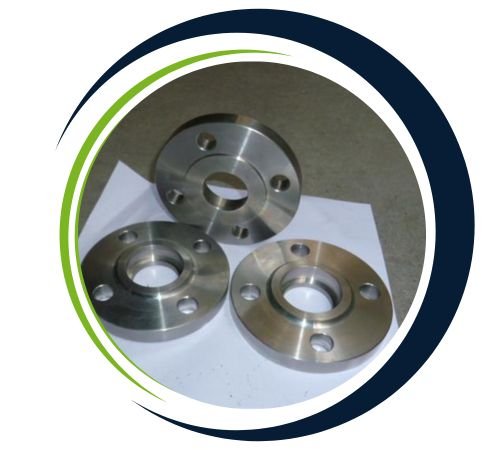

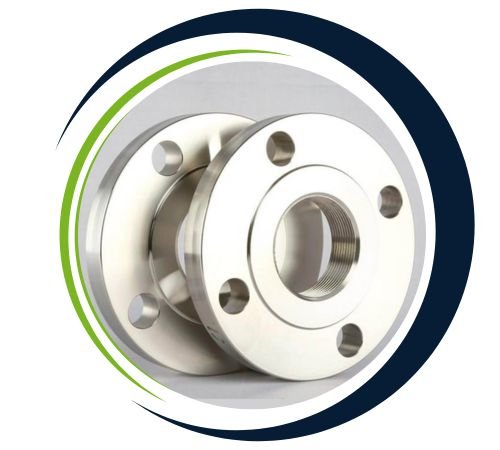

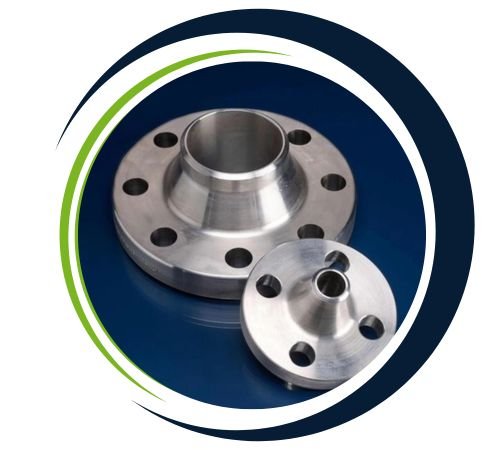

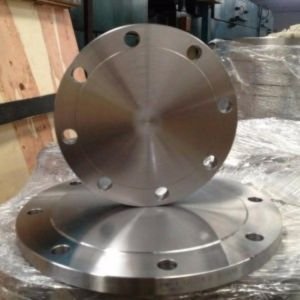

Vishal Flanges is a reputable manufacturer and supplier of Titanium Flanges, based in Delhi, India. They provide top-notch flange solutions to industries around the globe. Designed for outstanding performance, Titanium Flanges are celebrated for their remarkable resistance to corrosion, lightweight durability, and stability at high temperatures. Crafted from premium materials like Titanium Grade 2 and Grade 5 (Ti-6Al-4V), these flanges adhere to strict international standards, making them perfect for challenging environments. Vishal Flanges offers a diverse range of flange types, including weld neck, blind, socket weld, threaded, and lap joint, catering to sectors such as chemical, aerospace, marine, oil & gas, and power generation.
Titanium flanges mainly consist of commercially pure titanium or titanium alloys like Grade 2 and Grade 5 (Ti-6Al-4V). These flanges have superior strength-to-weight ratio, corrosion resistance, and high-temperature characteristics. Grade 2 titanium offers moderate strength with superior weldability and formability, while Grade 5 possesses superior strength and toughness. Mechanical properties usually consist of tensile strength between 345 MPa (Grade 2) and 895 MPa (Grade 5), with high fatigue resistance and low weight (approximately 4.5 g/cm³), which makes them suitable for severe applications in harsh environments.
Titanium Flanges are typically made from Grade 2 (commercially pure titanium) or Grade 5 (Ti-6Al-4V). Grade 2 is known for its excellent corrosion resistance, ductility, and weldability, boasting a tensile strength of about 344 MPa. On the other hand, Grade 5, which contains 6% aluminum and 4% vanadium, provides superior mechanical strength of up to 895 MPa while still being resistant to corrosion. These flanges are lightweight (density ~4.5 g/cm³), non-magnetic, and perform exceptionally well in chloride-rich and oxidizing environments. They also exhibit excellent fatigue and creep resistance, making them perfect for long-term use in tough conditions.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |

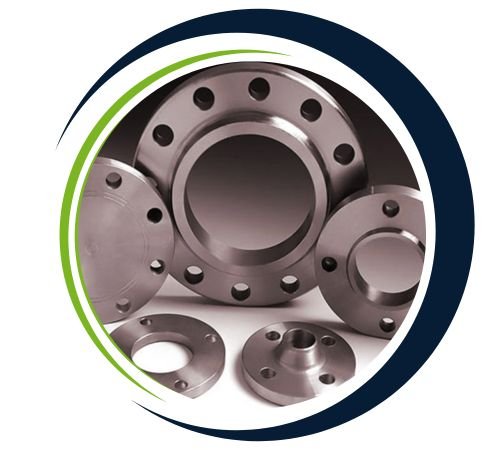

| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|

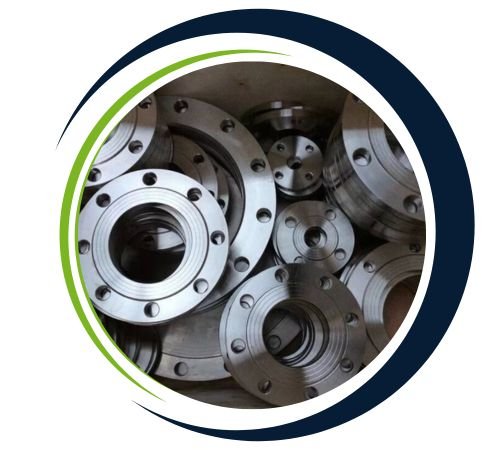

| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |
Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of Titanium Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Flanges find broad usage in applications where strength corrosion resistance and reliability are significant. Popular applications involve the aerospace sector where they are employed in aircraft engines and aircraft because of their high strength and light weight. Titanium flanges are utilized in pipeline systems to transport corrosive materials like acids and alkalis in the petrochemical and chemical industries. The marine sector depends on titanium flanges to eliminate seawater corrosion, and that is why titanium flanges fit perfectly in marine and shipbuilding applications. Also, titanium flanges are used in power generation plants, healthcare equipment and in desalination plants to create long-lasting and high-performance applications in extreme conditions.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Titanium Flanges find extensive use in aerospace for jet engines and airframe structures, thanks to their impressive strength-to-weight ratio. In the chemical and petrochemical sectors, they are crucial for piping systems that handle aggressive acids and chlorides. The marine and offshore industries rely on them for their exceptional resistance to seawater corrosion. Power plants, particularly nuclear facilities, utilize titanium flanges in high-temperature and high-pressure systems. Additionally, they are employed in medical devices, heat exchangers, desalination units, and pharmaceutical processing equipment, where corrosion resistance is vital.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
