Vishal Flanges stands out as a top-notch manufacturer and supplier of Titanium Grade 5 Flanges, proudly based in Delhi, India. They specialize in delivering high-performance flange solutions tailored for critical and demanding applications. Commonly referred to as Ti-6Al-4V, Grade 5 titanium is a robust alloy known for its impressive corrosion resistance, making it perfect for both high-pressure and high-temperature settings. The Grade 5 flanges from Vishal are meticulously engineered to comply with international standards and find extensive use in industries like aerospace, marine, chemical, and oil & gas. Thanks to their advanced forging and machining capabilities, the company guarantees precise dimensions, exceptional mechanical integrity, and a long service life for every flange they produce.
Titanium Grade 5 flanges, or Ti-6Al-4V, contain roughly 90% titanium, 6% aluminum, and 4% vanadium. The alloy provides an exceptional strength-to-corrosion-resistance-to-weight ratio. Grade 5 titanium flanges contain tensile strength of about 895 MPa and yield strength of roughly 828 MPa with an elongation of about 10%. They are also very effective at high temperatures and have very good fatigue resistance. These mechanical characteristics render Titanium Gr 5 flanges well suited for high-performance applications in aerospace, marine, and chemical processing industries.
Titanium Grade 5 (Ti-6Al-4V) is made up of about 6% aluminum, 4% vanadium, and the rest titanium. This alloy boasts a fantastic blend of lightweight and high strength, with a tensile strength around 895 MPa, yield strength of about 828 MPa, and remarkable fatigue resistance. With a density of roughly 4.43 g/cm³, it performs well even at elevated temperatures. Grade 5 also shines in terms of corrosion resistance, especially in environments rich in chlorides. These impressive mechanical properties make it the go-to choice for high-performance flanges that can withstand tough conditions involving pressure, heat, and aggressive chemicals.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |
| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

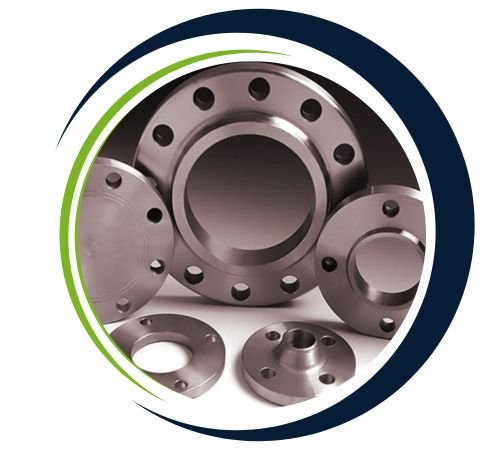

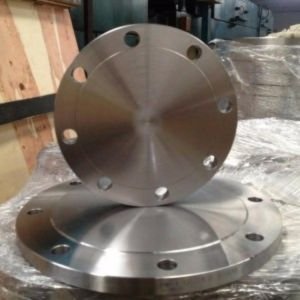

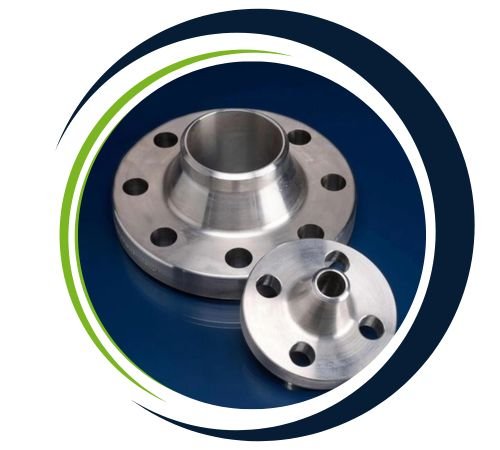

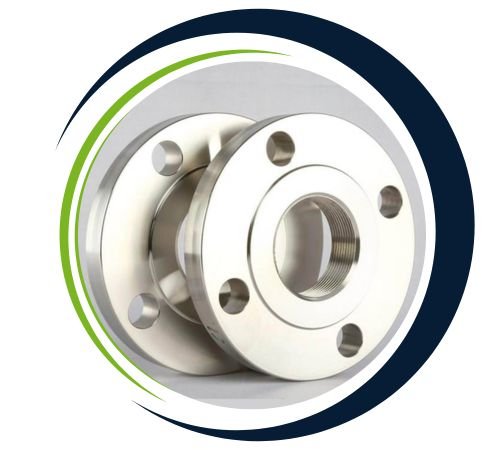

Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of Titanium Gr 5 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Grade 5 flanges are commonly employed in applications that demand high strength, lightweight components, and superior corrosion resistance. Typical applications include aerospace parts, where their strength-to-weight ratio is a requirement, and marine environments owing to their corrosion resistance against seawater. They are utilized in piping systems handling corrosive fluids in petrochemical and chemical plants. They also find application in power generation, offshore oil and gas, and medical equipment. Titanium Gr 5 flanges are suitable for high-temperature and high-pressure applications, which find use in heat exchangers, reactors, and pressure vessels in demanding operating conditions.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Yes, we offer custom sizes for Titanium Gr 5 Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
In the aerospace and aviation sectors, Titanium Grade 5 Flanges are widely utilized for structural and engine components, thanks to their excellent strength-to-weight ratio. In the chemical and petrochemical industries, they are perfect for managing corrosive fluids and gases. Marine and offshore platforms depend on their outstanding resistance to seawater. Additionally, these flanges are crucial in power generation, including nuclear facilities, where high-stress and high-temperature applications are common. They are also favored in medical equipment, desalination plants, and heat exchangers for their durability, corrosion resistance, and ability to maintain structural integrity under challenging conditions.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
