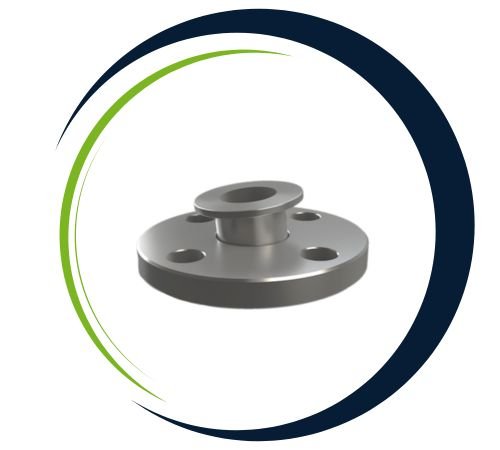

Vishal Flanges is a well-respected manufacturer and supplier of Alloy 20 Lap Joint Flanges, located in Delhi, India. They specialize in providing corrosion-resistant solutions that are perfect for tough industrial settings. Alloy 20 is a unique blend of nickel, iron, and chromium, with added copper and molybdenum, specifically crafted to withstand acid attacks, especially from sulfuric acid. These lap joint flanges are perfect for systems that need to be easily taken apart and realigned. Vishal Flanges ensures that their products meet international quality standards and dimensions, guaranteeing durability, excellent corrosion resistance, and cost-effective upkeep. Their Alloy 20 Lap Joint Flanges find extensive use in the chemical, pharmaceutical, petrochemical, and food processing industries.
Alloy 20 Lap Joint Flanges are made from a special alloy that includes nickel, chromium, molybdenum, and copper, which gives them excellent resistance to corrosion, especially in sulfuric acid environments. These flanges are designed with high tensile strength, impressive yield strength, and outstanding flexibility, ensuring they last over time. Their exceptional weldability and machinability make them perfect for applications that require frequent disassembly and reassembly. With a sturdy structure and excellent performance under high pressure and temperature, Alloy 20 Lap Joint Flanges are well-suited for demanding industrial applications.
Alloy 20 Lap Joint Flanges are made up of nickel (32–38%), iron (the rest), chromium (19–21%), molybdenum (2–3%), copper (3–4%), and trace amounts of niobium. This mix provides exceptional resistance to sulfuric acid, pitting from chlorides, and stress corrosion cracking. These flanges boast a tensile strength of about 551 MPa, a yield strength of 241 MPa, and impressive elongation and toughness. The alloy retains its mechanical strength even in highly corrosive and mildly oxidizing conditions. Alloy 20 flanges are also recognized for their good weldability and formability, making them ideal for complex fabrication and installation tasks.
| Specification | ASTM B462 / ASME SB462 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B462 FAlloy 20 Flanges |
| Grades | Alloy 20 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of Alloy 20 Lap Joint Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy 20 Lap Joint Flanges find their place in industries that need reliable connections with corrosion-resistant features. They are particularly advantageous in chemical processing for managing aggressive substances like sulfuric acid and chlorides. Their design allows for easy alignment and assembly, making them ideal for piping systems that require regular inspections and maintenance. These flanges are also utilized in the pharmaceutical sector, food processing, marine environments, and heat exchangers. Their exceptional performance and resistance to pitting and crevice corrosion ensure they function optimally even in challenging operational conditions.
Alloy 20 Lap Joint Flanges find their place in industries that need reliable connections with corrosion-resistant features. They are particularly advantageous in chemical processing for managing aggressive substances like sulfuric acid and chlorides. Their design allows for easy alignment and assembly, making them ideal for piping systems that require regular inspections and maintenance. These flanges are also utilized in the pharmaceutical sector, food processing, marine environments, and heat exchangers. Their exceptional performance and resistance to pitting and crevice corrosion ensure they function optimally even in challenging operational conditions.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |

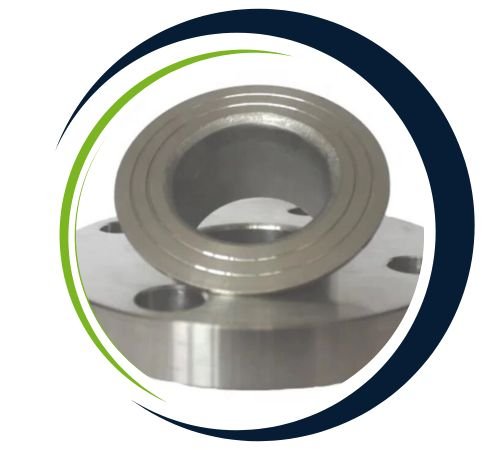

| ASME/ANSI B 16.5 | Lap Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Lap Joint Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Lap Joint Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Alloy 20 Lap Joint Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
