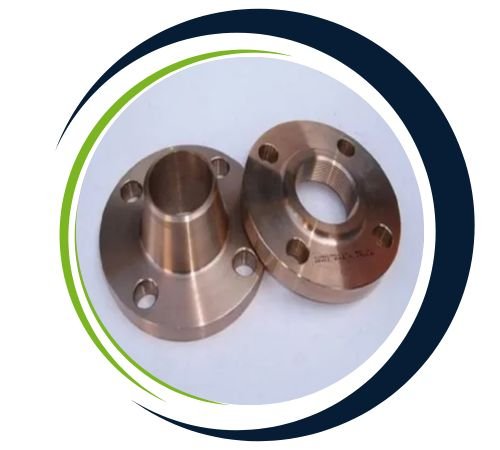

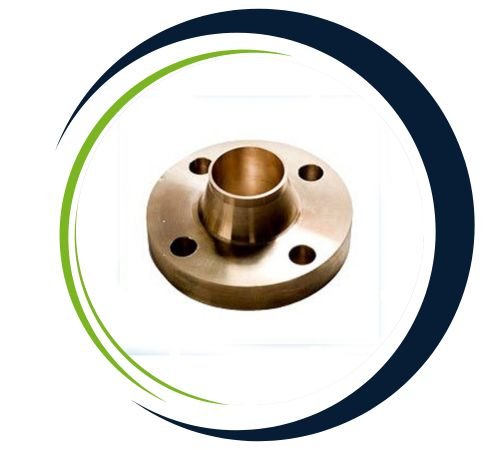

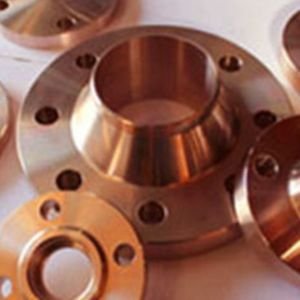

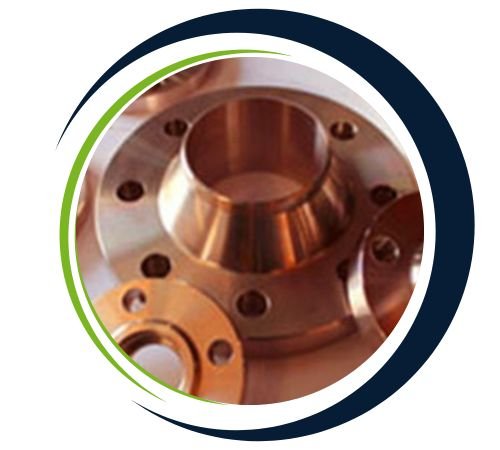

Vishal Flanges, based in Delhi, India, stands out as a top manufacturer and supplier of Copper Nickel Weldneck flanges. Known for their impressive corrosion resistance and durability, these flanges are perfect for tough marine and industrial settings. With a strong commitment to quality and precision, Vishal Flanges crafts Copper Nickel Weldneck flanges that adhere to strict international standards. Supported by state-of-the-art manufacturing facilities and a talented team, we provide dependable and efficient flange solutions to clients around the globe, serving industries like shipbuilding, chemical processing, and power generation.
Copper Nickel Weldneck flanges are made up of copper (70%-90%) and nickel (10%-30%), along with small amounts of iron and manganese to boost their strength and resistance to corrosion. These flanges excel in resisting seawater corrosion, biofouling, and stress cracking. They also offer good tensile strength, ductility, and thermal stability, making them well-suited for challenging environments. Their strong mechanical properties guarantee reliable performance in high-pressure systems and varying temperature conditions.
| Specification | ASTM B151 / ASME SB151 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (170/30NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JIS70/30220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 200 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 70/30 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B151 Copper Nickel 90/10 Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS 70/30220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Copper Nickel 70/30, 90/10 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of Copper Nickel Weldneck Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Vishal Flanges’ Copper Nickel Weldneck flanges are widely used in industries that demand exceptional resistance to seawater and corrosion. You’ll often find them in shipbuilding, desalination plants, and offshore oil and gas platforms, where they ensure secure pipe connections in marine settings. Moreover, these flanges are utilized in heat exchangers, condensers, and power generation systems due to their thermal conductivity and durability. Their versatility and strength make them perfect for critical applications where safety and longevity are essential.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Cupro Nickel 90/10 | 2.0872 | C70600 |
| Cupro Nickel 70/30 | 2.0882 | C71500 |
| ASME/ANSI B 16.5 | Welding Neck Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Copper Nickel Weldneck Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
