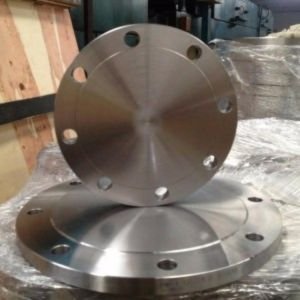

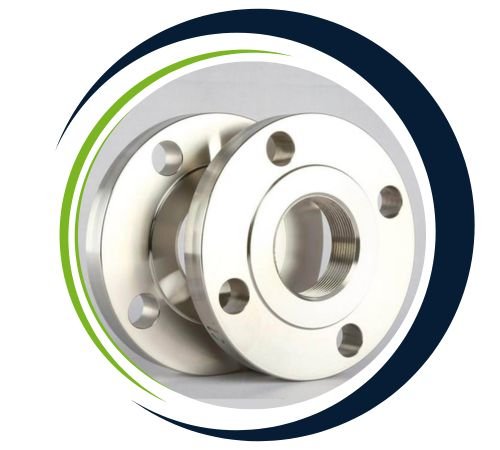

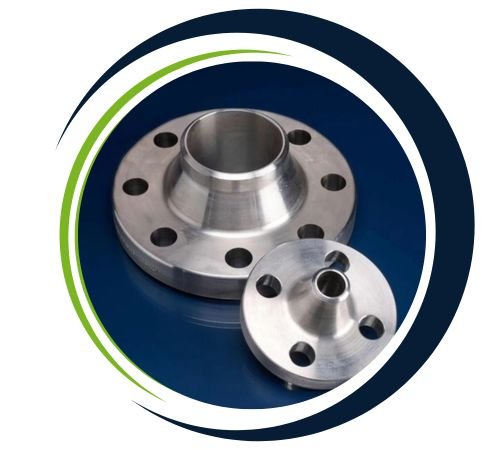

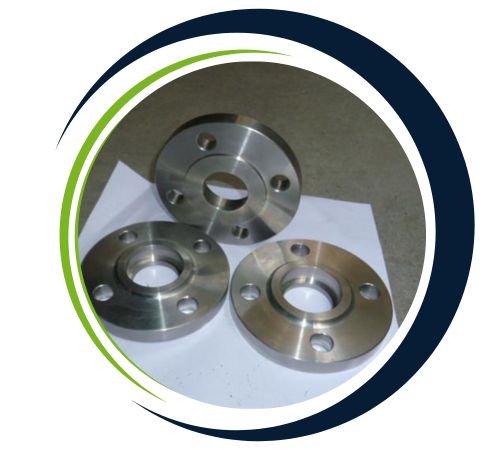

Vishal Flanges stands out as a top-notch manufacturer and supplier of Monel 400 Flanges right in the heart of Delhi, India. They pride themselves on delivering high-quality products that can withstand the toughest industrial conditions. Crafted from a robust nickel-copper alloy, Monel 400 flanges are known for their exceptional resistance to seawater, acids, alkalis, and high-temperature corrosion. These flanges find their place in various sectors, including marine engineering, chemical processing, oil and gas, and power generation. Vishal Flanges offers an impressive selection of Monel 400 flanges, such as weld neck, blind, slip-on, threaded, and socket weld types, all produced to meet global standards like ASME, ASTM, and DIN.
Monel 400 is a solid-solution alloy that mainly consists of 65–70% nickel and 20–29% copper, along with trace amounts of iron, manganese, carbon, and silicon. This unique blend gives it remarkable mechanical properties, boasting a tensile strength of about 550–620 MPa and a yield strength of 170–275 MPa, while maintaining good ductility and toughness, even in freezing temperatures. Monel 400 flanges are particularly resistant to corrosion in seawater, hydrofluoric acid, sulfuric acid, and alkaline environments, making them perfect for both acidic and neutral settings. The alloy also holds its strength and structural integrity under high temperatures and pressure.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

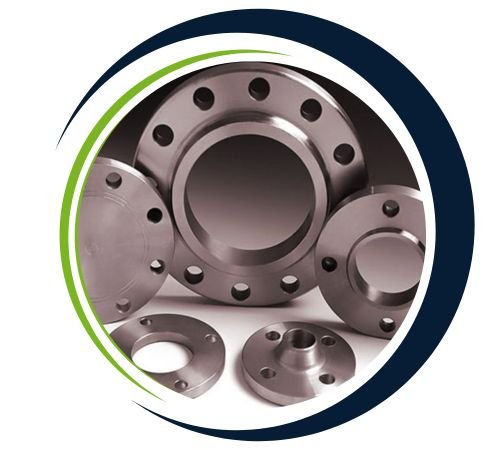

| Production Technique | Forged, Heat treated and machined |

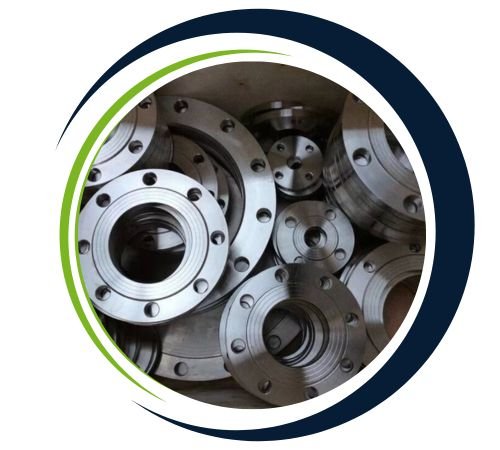

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of Monel 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel 400 Flanges are perfect for situations that demand high strength and resistance to corrosive environments. They are commonly found in marine systems, chemical plants, hydrocarbon processing, and nuclear energy sectors. These flanges are utilized in heat exchangers, valves, pressure vessels, and piping systems that face saltwater, acidic solutions, and elevated temperatures. Their durability and non-magnetic properties also make them a great fit for aerospace and submarine components. Additionally, Monel 400 flanges are dependable in brine heaters, crude oil stills, and chlorinated solvents, where preventing material failure due to corrosion is crucial.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Yes, we offer custom sizes for Monel 400 Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
