DIN 2543 PN16 Slip On Flanges Manufacturer and Supplier in Delhi, India

Vishal Flanges, based in Delhi, India, has earned a solid reputation as a reliable manufacturer and supplier of DIN 2543 PN16 Slip-On Flanges. Renowned for their precision engineering and durability, these flanges meet international standards and are crafted for a wide range of industrial applications. At Vishal Flanges, we place a strong emphasis on quality and customer satisfaction, providing top-notch products that serve various sectors. With our state-of-the-art manufacturing facilities and a talented team, we deliver dependable flange solutions that enhance efficiency and safety in critical operations.

DIN 2642 PN10 Lapped Joint Pipe Flange In India, DIN 2642 PN10 Lap Joint Plate Flange United kingdom, DIN 2642 PN10 Standards Lap Joint Flanges Delhi, Raised Face DIN 2642 PN10 LJ Flanges Delhi, Best Price of DIN 2642 PN10 Lap Joint Flange India, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Delhi, DIN 2642 PN10 Lapped Joint Flange In India.

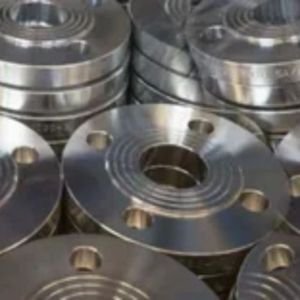

DIN 2543 PN16 Slip On Flanges

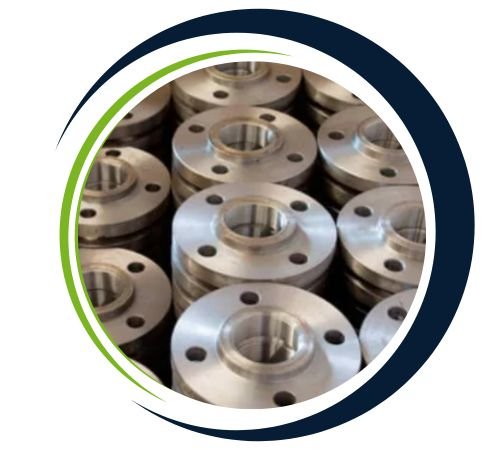

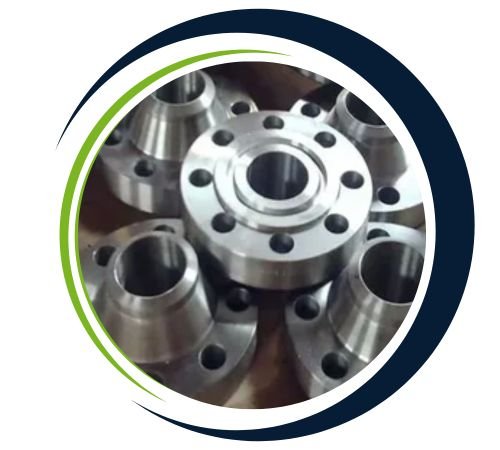

DIN 2642 PN10 Lapped Joint Pipe Flange

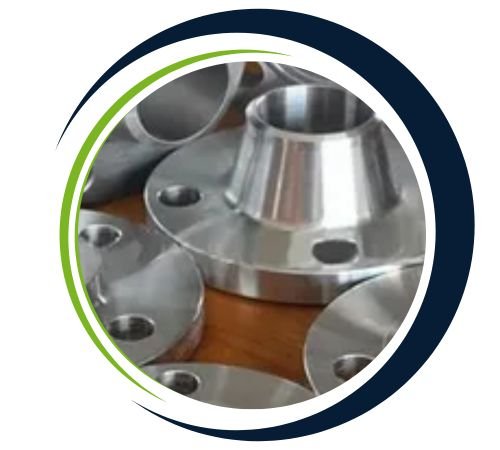

DIN 2642 PN10 Lap Joint Plate Flange

Typically crafted from high-quality carbon steel or stainless steel, DIN 2543 PN16 Slip-On Flanges strike a perfect balance between strength, corrosion resistance, and durability. They are rated for a pressure of PN16, which means they can handle a maximum pressure of 16 bar at room temperature. These flanges boast excellent weldability, impressive tensile strength, and consistent mechanical properties. Their sturdy design guarantees reliable performance even under moderate pressure and temperature conditions.

DIN 2642 PN10 Lap Joint Flanges Supplier in India, DIN 2642 PN10 Lapped Joint Flanges Stockist in United kingdom, DIN 2642 PN10 Lap Joint Flanges Manufacturer in Delhi, DIN 2642 PN10 Lap Joint Flanges Supplier in Delhi, DIN 2642 PN10 Lapped Joint Flanges Stockist in India, DIN 2642 PN10 LJ Flanges Manufacturer in Delhi, DIN 2543 PN16 Slip On Flanges India.

Largest DIN 2543 PN16 Slip On Flanges in Delhi, India

Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of DIN 2543 PN16 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

DIN 2543 PN16 Slip On Flanges Specification

Size Chart	1/2″ (15 NB) To 48″ (1200NB)
Coating Flanges Faces	Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint
Design For Size	DIN, EN, ASA, PN, JIS, BS, ANSI, ASME
Pressure Rating Table	Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Supporting Flanges Material	Flanges Bolts, Gasket, Ring Joint
Connect Type Type	FF, RTJ, SMF, LMF, RF, LJF
Production Process	Forged, Heat Treated and Machined
Standard	ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange
Machining Equipment	Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc

DIN 2543 PN16 Slip On Flanges Dimensions

Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
Diameter	ISO Series	DIN Series
15	–	20	95	14	65	35	30	2	4	6	45	2	4	M 12	14	0,648
	21,3	–					32
20	–	25	105	16	75	38	38	2,3	4	6	58	2	4	M 12	14	0,952
	26,9	–					40
25	–	30	115	16	85	38	42	2,6	4	6	68	2	4	M 12	14	1,14
	33,7	–					45
32	–	38	140	16	100	40	52	2,6	6	6	78	2	4	M 16	18	1,69
	42,4	–					56
40	–	44,5	150	16	110	42	60	2,6	6	7	88	3	4	M 16	18	1,86
	48,3	–					64
50	–	57	165	18	125	45	72	2,9	6	8	102	3	4	M 16	18	2,53
	60,3	–					75
65	76,1	–	185	18	145	45	90	2,9	6	10	122	3	4	M 16	18	3,06
80	88,9	–	200	20	160	50	105	3,2	8	10	138	3	8	M 16	18	3,7
100	–	108	220	20	180	52	125	3,6	8	12	158	3	8	M 16	18	4,62
	114,3	–					131
125	–	133	250	22	210	55	150	4	8	12	188	3	8	M 16	18	6,3
	139,7	–					156
150	–	159	285	22	240	55	175	4,5	10	12	212	3	8	M 20	22	7,75
	168,3	–					184
200	219,1	–	340	24	295	62	235	5,9	10	16	268	3	8	M 20	22	11,3
250	–	267	395	26	350	68	285	6,3	12	16	320	3	12	M 20	22	14,7
	273	–					292
300	323,9	–	445	26	400	68	344	7,1	12	16	370	4	12	M 20	22	17,4
350	355,6	–	505	26	460	68	385	7,1	12	16	430	4	16	M 20	22	23,6
	–	368														21,6
400	406,4	–	565	26	515	72	440	7,1	12	16	482	4	16	M 24	26	28,6
	–	419														26,2
(450)	457	–	615	28	565	72	488	7,1	12	16	532	4	20	M 24	26	31,5
500	508	–	670	28	620	75	542	7,1	12	16	585	4	20	M 24	26	38,1
600	610	–	780	28	725	80	642	7,1	12	18	685	5	20	M 27	30	44,6
700	711	–	895	30	840	80	745	8	12	18	800	5	24	M 27	30	62,4
800	813	–	1015	32	950	90	850	8	12	18	905	5	24	M 30	33	84,1
900	914	–	1115	34	1050	95	950	10	12	20	1005	5	28	M 30	33	98,5
1000	1016	–	1230	34	1160	95	1052	10	16	20	1110	5	28	M 33	36	115

DIN 2543 PN16 Slip-On Flanges find extensive use in industries like oil and gas, petrochemical, water treatment, and power generation. They create secure connections for pipelines, valves, and other equipment in moderate-pressure systems. Perfect for transporting fluids and gases, these flanges ensure leak-proof and long-lasting joints. Their adaptability makes them suitable for a variety of environments, including corrosive and high-temperature settings, providing reliable solutions for both industrial and infrastructure projects.

DIN 2642 PN10 Lapped Joint Pipe Flange In India, DIN 2642 PN10 Lap Joint Plate Flange United kingdom, DIN 2642 PN10 Standards Lap Joint Flanges Delhi, Raised Face DIN 2642 PN10 LJ Flanges Delhi, Best Price of DIN 2642 PN10 Lap Joint Flange India, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Delhi, DIN 2642 PN10 Lapped Joint Flange In India.

Types of DIN 2543 PN16 Slip On Flanges

Are Custom Sizes Available for DIN 2543 PN16 Slip On Flanges?

Yes, we offer custom sizes for DIN 2543 PN16 Slip On Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
