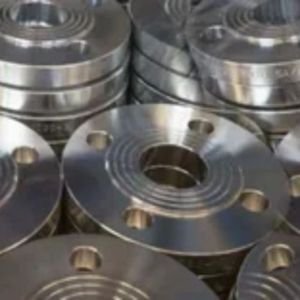

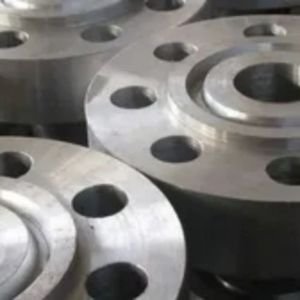

Vishal Flanges, located in Delhi, India, stands out as a leading manufacturer and supplier of DIN 2573 PN6 Slip On Flanges. Known for their commitment to precision engineering, Vishal Flanges delivers high-quality flanges that ensure reliability and efficiency in various industrial applications. Our DIN 2573 PN6 Slip On Flanges are specifically designed for low-pressure piping systems and are crafted in accordance with DIN standards. With a strong focus on quality, we serve industries such as water supply, HVAC, and general engineering, providing products that blend durability, affordability, and outstanding performance.
DIN 2573 PN6 Slip On Flanges are made from carbon steel, stainless steel, or alloy steel, tailored to meet specific application needs. These flanges boast moderate tensile and yield strength, along with impressive ductility and toughness. Designed for low-pressure systems with a nominal pressure rating of 6 bar, they offer excellent machinability and weldability. Their slip-on design makes installation and alignment a breeze, making them a practical and versatile option for a range of piping applications.
Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Germany standard flange DIN 2573 for soldering or welding Nominal Pressure 6 | |||||||||||
| Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||||
| Rated Diameter | d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
| ISO Series 1 | DIN Series 2 | ||||||||||
| 15 | – | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 | 0,41 |
| 21,3 | – | 22 | |||||||||
| 20 | – | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 | 0,60 |
| 26,9 | – | 27,6 | |||||||||
| 25 | – | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 | 0,74 |
| 33,7 | – | 34,4 | |||||||||
| 32 | – | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 | 1,19 |
| 42,4 | – | 43,1 | |||||||||
| 40 | – | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 | 1,39 |
| 48,3 | – | 49 | |||||||||
| 50 | – | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 | 1,53 |
| 60,3 | – | 61,1 | |||||||||
| 65 | 76,1 | – | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 | 1,89 |
| 80 | 88,9 | – | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 | 2,98 |
| 100 | – | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 | 3,46 |
| 114,3 | – | 115,9 | |||||||||
| 125 | – | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 | 4,60 |
| 139,7 | – | 141,6 | |||||||||
| 150 | – | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 | 5,22 |
| 168,3 | – | 170,5 | |||||||||
| 200 | 219,1 | – | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 | 7,15 |
| 250 | – | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 | 9,61 |
| 273 | – | 276,2 | |||||||||
| 300 | 323,9 | – | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 | 12,60 |
| 350 | 355,6 | – | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 | 15,60 |
| – | 368 | 372,2 | |||||||||
| 400 | 406,4 | – | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 | 18,40 |
| – | 419 | 423,7 | |||||||||
| (450)* | 457 | – | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 | 21,40 |
| 500 | 508 | – | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 | 24,60 |
DIN 2573 PN6 Slip On Flanges find extensive use in industries that require low-pressure connections. They are perfect for water distribution systems, wastewater treatment facilities, and HVAC systems, thanks to their reliable performance and straightforward installation. Additionally, these flanges are utilized in food processing, agricultural irrigation systems, and general engineering projects. Their compatibility with various piping materials and resistance to moderate environmental conditions make them a go-to choice for projects that demand efficient and cost-effective solutions.
Yes, we offer custom sizes for DIN 2573 PN6 Slip On Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
