Vishal Flanges, located in Delhi, India, has earned a solid reputation as a reliable manufacturer and supplier of SS400 Flanges, known for their impressive strength, durability, and top-notch performance. As a leading name in the industry, we provide flanges that cater to a wide range of industrial needs, ensuring they meet global standards for reliability and compliance. SS400 Flanges are favored for their cost-effectiveness, high-quality build, and versatility across various applications. With a strong emphasis on precision and customer satisfaction, Vishal Flanges has become a go-to partner for all industrial flange solutions.
Our SS400 Flanges are crafted from SS400 grade steel, a structural steel that boasts a well-balanced mix of carbon, manganese, phosphorus, and sulfur. This combination gives them excellent tensile strength, ductility, and toughness, making them perfect for heavy-duty tasks. With a yield strength of around 245 MPa and tensile strength between 400 to 510 MPa, SS400 flanges provide remarkable load-bearing capabilities. Plus, their good weldability and machinability make them incredibly versatile for construction and industrial projects.

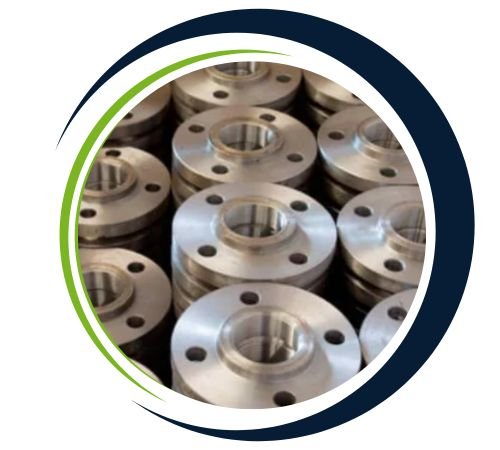

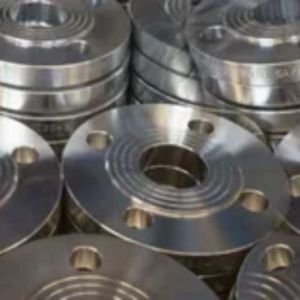

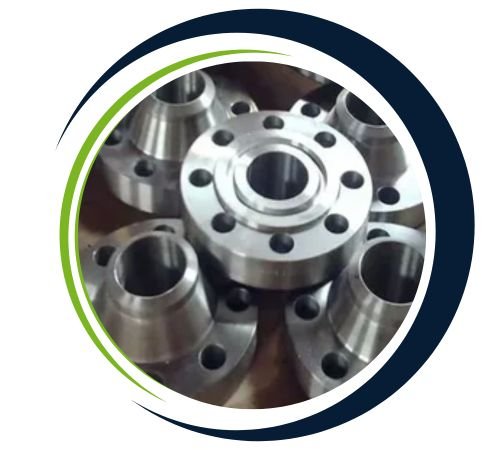

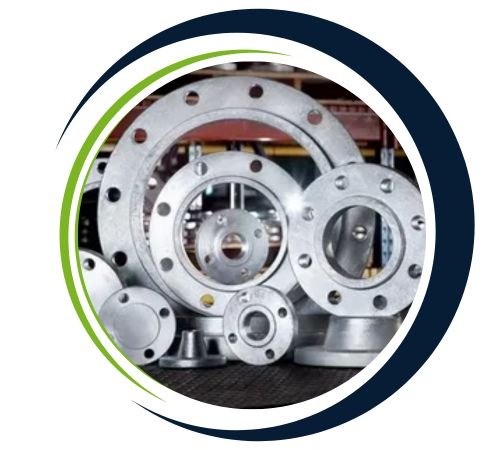

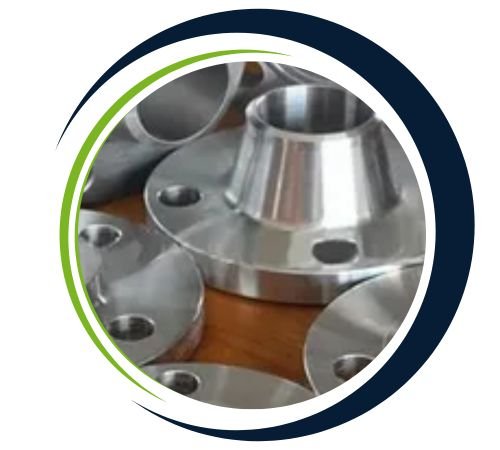

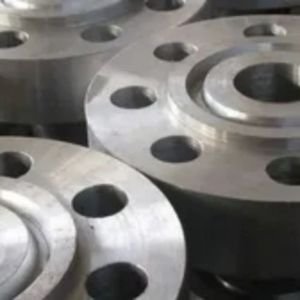

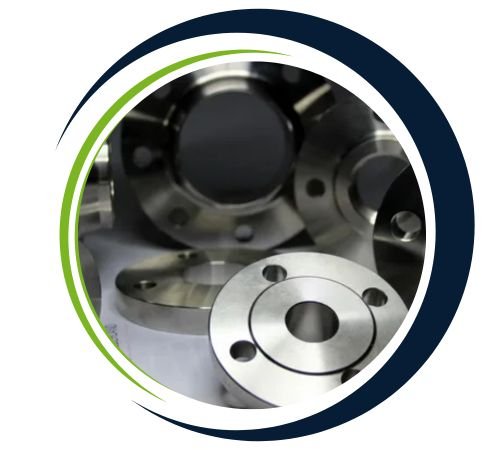

Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of SS400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | ASTM SS400 and ASME SS400 |
|---|---|
| ASME B16.5 Carbon Steel SS400 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel SS400 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel SS400 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel SS400 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel SS400 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel SS400 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel SS400 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Carbon Steel SS400 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Large Male-Female (LMF), Flat Face (FF), Lap-Joint Face (LJF), Male-Female (SMF), Small Tongue & Groove, Large Tongue & Groove |
| Most common types of Carbon Steel SS400 Flanges |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Carbon Steel SS400 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Specialized manufacturer of |
|
|
Element |
Weight % |
|
Carbon |
0.08 – 0.15 |
|
Silicon |
0.15 – 0.50 |
|
Manganese |
0.30 – 0.60 |
|
Phosphorus |
0.025 max * |
|
Sulphur |
0.025 max * |
|
Molybdenum |
0.90 – 1.10 |
|
Chromium |
2.00 – 2.50 |
|
Nickel |
0.5 max |
Property | Values |
Ultimate Tensile Strength * | 95 min Ksi (655 Mpa) |
0.2 % Yield Strength * | 75 min Ksi (517 Mpa) |
Elongation * | 17 % min |
Reduction of Area * | 35 % min |
Charpy Impact Toughness | 42 mean/ 33 min J at –18o C |
Hardness | 197 – 237 BHN (75 Ksi min) |
SS400 Flanges find their place in various industries, including construction, infrastructure, and engineering, thanks to their high strength and cost-efficiency. They are perfect for piping systems, structural connections, and equipment assemblies. In the oil and gas industry, these flanges are essential components in high-pressure and high-temperature settings. Moreover, SS400 flanges are utilized in shipbuilding, bridge construction, and machinery manufacturing, where their robust performance guarantees safety and reliability in challenging operational conditions.
Yes, we offer custom sizes for SS400 Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
