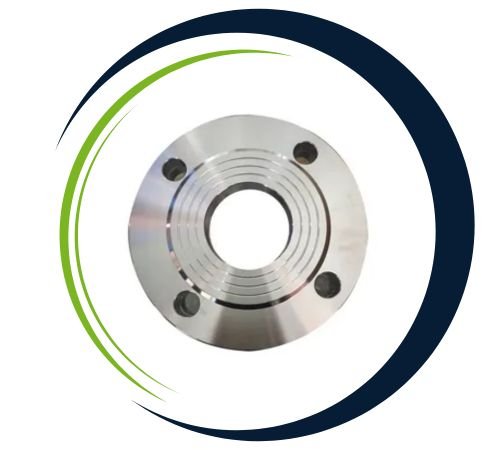

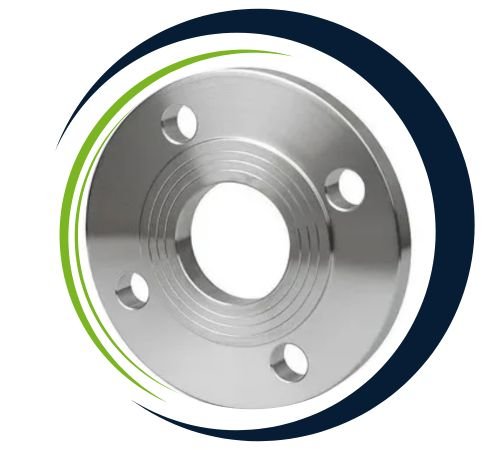

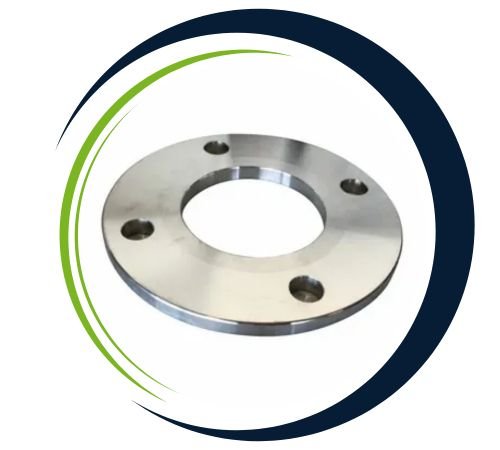

Vishal Flanges stands out as a reputable manufacturer and supplier of Titanium Plate Flanges, located in Delhi, India. They cater to industries that require lightweight, corrosion-resistant, and high-performance flange solutions. Crafted from top-quality titanium grades like Grade 2 and Grade 5, these flanges feature a flat face and are bolted directly to pipes, ensuring a secure and leak-proof connection across various piping systems. Known for their remarkable resistance to chemical attacks and seawater corrosion, Vishal Flanges produces these flanges in compliance with international standards such as ASME, ASTM, and ANSI, serving sectors like aerospace, marine, power generation, and chemical processing.
Titanium Plate Flanges are made primarily from titanium (90-99%) with small additions of aluminium, vanadium, or other elements, depending on the grade. They exhibit exceptional strength-to-weight ratio, corrosion resistance, and high-temperature stability. Key mechanical properties include a tensile strength of 240-550 MPa and density of around 4.5 g/cm³, offering lightweight yet durable performance. Advantages include resistance to harsh environments (seawater, chemicals), biocompatibility for medical applications, excellent fatigue resistance, low thermal expansion, and long service life. These features make them ideal for aerospace, marine, and chemical processing industries.
| Specifications | ASTM B381 / ASME SB381 |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1 / 2” to 18″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Type | Plate Flanges |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Vishal Flanges, a premier supplier in Delhi, India, specializes in high-quality Titanium Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Due to their exceptional properties, titanium Plate Flanges are widely used across various industries. They are commonly employed in chemical processing and petrochemical industries for their resistance to corrosion and chemical attacks. In aerospace and marine applications, these flanges provide a lightweight yet durable solution for handling high pressures and temperatures. Titanium’s biocompatibility makes it suitable for medical devices and implants. Additionally, they are used in power generation and desalination plants due to their excellent strength, durability, and ability to withstand harsh environmental conditions.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Titanium Gr. 5 | 3.7165 | N56400 |
Yes, we offer custom sizes for Titanium Plate Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
