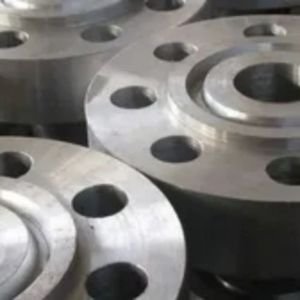

Vishal Flanges, located in Delhi, India, has earned a solid reputation as a reliable manufacturer and supplier of ANSI B16.47 Series B Flanges. These flanges are specifically designed to meet the demanding needs of large-diameter piping systems and are well-known for their durability, precision, and dependability. Made in accordance with international standards, Vishal Flanges provides top-notch solutions for various industries, including oil and gas, petrochemicals, and power generation. With a strong focus on delivering exceptional performance and ensuring customer satisfaction, Vishal Flanges stands out as a leading provider of ANSI B16.47 Series B Flanges both in India and internationally.
ANSI B16.47 Series B Flanges are crafted from high-quality materials such as carbon steel, stainless steel, and alloy steel to cater to diverse industrial needs. These flanges boast impressive mechanical properties, including high tensile strength, impact resistance, and excellent load-bearing capacity. Tailored for large-diameter applications, they deliver robust performance even under high-pressure and high-temperature conditions. The meticulous engineering guarantees a secure and leak-proof connection, making them ideal for critical industrial applications.

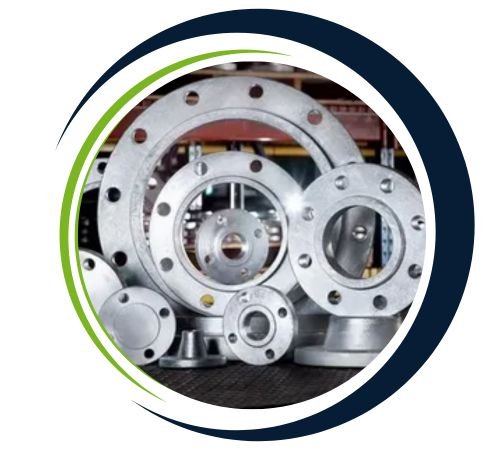

Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of ANSI B16.47 Series B Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
|
ASME B16.47 Series B Slip On Flange Class 150 LBS Dimensions
|
|||||||||
|
NPS |
A |
B |
I |
Holes |
C |
D |
F |
G |
Weight |
|
22″ |
750 |
563.6 |
35 |
20 |
46 |
80 |
610 |
641 |
72.66 |
|
26″ |
870 |
665.2 |
35 |
24 |
68.5 |
90 |
724 |
749 |
120.47 |
|
28″ |
925 |
716 |
35 |
28 |
71.5 |
95 |
781 |
800 |
136.16 |
|
30″ |
985 |
766.8 |
35 |
28 |
74.5 |
100 |
832 |
857 |
161.04 |
|
32″ |
1060 |
817.6 |
41 |
28 |
81 |
106 |
889 |
914 |
205.07 |
|
34″ |
1110 |
868.4 |
41 |
32 |
82.5 |
110 |
940 |
965 |
216.76 |
|
36″ |
1170 |
919.2 |
41 |
32 |
90.5 |
120 |
997 |
1022 |
265 |
|
38″ |
1240 |
970 |
41 |
32 |
87.4 |
120 |
1060 |
1073 |
297.15 |
|
40″ |
1290 |
1020 |
41 |
36 |
90.5 |
125 |
1111 |
1124 |
319.65 |
|
42″ |
1345 |
1071.6 |
41 |
36 |
97 |
130 |
1168 |
1194 |
363.84 |
|
44″ |
1405 |
1122.4 |
41 |
40 |
102 |
136 |
1219 |
1245 |
414.1 |
|
46″ |
1455 |
1173.2 |
41 |
40 |
103 |
144 |
1270 |
1295 |
437 |
|
48″ |
1510 |
1224 |
41 |
44 |
108 |
150 |
1327 |
1359 |
484.52 |
|
50″ |
1570 |
1274.8 |
48 |
44 |
111 |
160 |
1378 |
1410 |
521.23 |
|
52″ |
1625 |
1325.6 |
48 |
44 |
116 |
170 |
1435 |
1460 |
581.51 |
|
54″ |
1685 |
1376.4 |
48 |
44 |
121 |
178 |
1492 |
1511 |
652.63 |
|
56″ |
1745 |
1427.2 |
48 |
48 |
124 |
188 |
1540 |
1575 |
713.31 |
|
58″ |
1805 |
1478 |
48 |
129 |
195 |
1590 |
1626 |
799.81 |
|
|
60″ |
1855 |
1528.8 |
48 |
52 |
132 |
200 |
1657 |
1676 |
836.15 |
|
ASME B16.47 Series B Slip On Flange Class 300 LBS Dimensions |
|||||||||
| NPS | A | B | I | Holes | C | D | F | G | Weight |
| 22″ | 840 | 563.6 | 41 | 24 | 66.5 | 100 | 640 | 641 | 159 |
| 26″ | 970 | 665.2 | 44 | 28 | 79.5 | 130 | 720 | 749 | 238.15 |
| 28″ | 1035 | 716 | 44 | 28 | 85.5 | 147 | 775 | 800 | 295.5 |
| 30″ | 1090 | 766.8 | 48 | 28 | 92 | 160 | 825 | 857 | 338.8 |
| 32″ | 1150 | 817.6 | 51 | 28 | 98.5 | 170 | 880 | 914 | 395.57 |
| 34″ | 1205 | 868.4 | 51 | 28 | 102 | 180 | 935 | 965 | 446.43 |
| 36″ | 1270 | 919.2 | 54 | 32 | 105 | 190 | 990 | 1022 | 502.9 |
| 38″ | 1170 | 970 | 41 | 32 | 108 | 140 | 995 | 1029 | 256.33 |
| 40″ | 1240 | 1020 | 44 | 32 | 114 | 150 | 1050 | 1086 | 316.78 |
| 42″ | 1290 | 1071.6 | 44 | 32 | 119 | 156 | 1100 | 1137 | 343.98 |
| 44″ | 1355 | 1122.4 | 48 | 32 | 124 | 160 | 1150 | 1194 | 394.78 |
| 46″ | 1415 | 1173.2 | 51 | 28 | 129 | 170 | 1205 | 1245 | 455.19 |
| 48″ | 1465 | 1224 | 51 | 32 | 133 | 180 | 1255 | 1314 | 482.1 |
| 50″ | 1530 | 1274.8 | 54 | 32 | 140 | 190 | 1305 | 1359 | 557.35 |
| 52″ | 1580 | 1325.6 | 54 | 32 | 144 | 198 | 1355 | 1410 | 595.56 |
| 54″ | 1660 | 1376.4 | 60 | 28 | 152 | 210 | 1410 | 1467 | 741.05 |
| 56″ | 1710 | 1427.2 | 60 | 28 | 154 | 220 | 1465 | 1518 | 786.03 |
| 58″ | 1760 | 1478 | 60 | 32 | 159 | 228 | 1515 | 1575 | 824.35 |
| 60″ | 1810 | 1528.8 | 60 | 32 | 164 | 235 | 1585 | 1620 | 904.14 |
ANSI B16.47 Series B Flanges find extensive use in industries that require dependable connections for large-diameter pipelines. In the oil and gas industry, they play a crucial role in the safe transportation of crude oil and natural gas. Petrochemical facilities rely on these flanges to manage aggressive chemicals and high-pressure fluids. The power generation sector utilizes them in thermal, nuclear, and renewable energy systems due to their strength and durability. Furthermore, these flanges are essential in water treatment plants and marine applications, ensuring efficient and reliable fluid handling across various operational settings.
Yes, we offer custom sizes for ANSI B16.47 Series B Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
