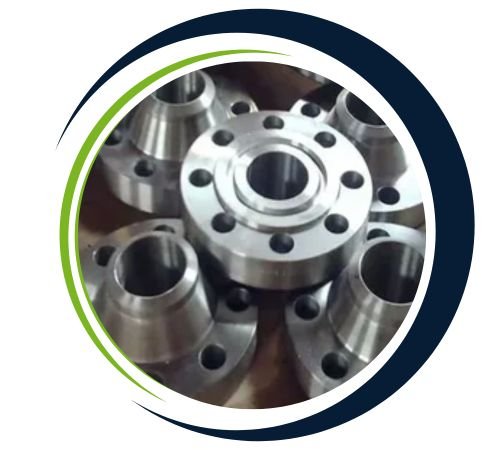

Vishal Flanges, based in Delhi, India, stands out as a reputable manufacturer and supplier of ANSI B16.5 flanges. Crafted to meet rigorous industry standards, these flanges deliver outstanding performance and reliability for connecting piping systems across a range of sectors. Our ANSI B16.5 flanges are meticulously engineered to ensure they are compatible, durable, and safe for various applications. With a strong focus on quality and customer satisfaction, Vishal Flanges offers a wide selection of flanges that comply with international standards, making us a reliable partner for all your industrial flange needs.
ANSI B16.5 flanges come in a variety of materials, including carbon steel, stainless steel, and alloy steel, each tailored to meet specific application demands. These flanges boast impressive mechanical properties, such as high tensile strength, excellent corrosion resistance, and the capability to endure high pressures and temperatures. Their material composition guarantees durability and longevity, while precision manufacturing ensures tight tolerances and dependable performance in critical settings.

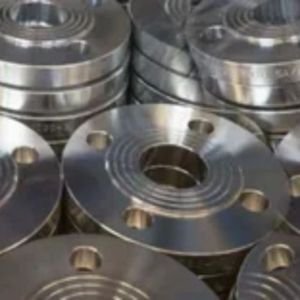

Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of ANSI B16.5 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
|
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Nominal Size | Outside Diameter (OD) | Min. Thickness (T) | RF Dia. (R) | No. of Bolt Holes | Diameter of Holes | Bolt Circle (BC) | SO Bore ID (SB) | WN Bore ID (WB) | Dia. Hub Base (HB) | Dia. Hub Top (HT) | SO LTH (SL) | WN LTH (WL) |
| 1⁄2 | 3.75 | 0.50 | 1.38 | 4 | 0.63 | 2.62 | 0.88 | 0.62 | 1.50 | 0.84 | 0.81 | 2.00 |
| 3⁄4 | 4.62 | 0.56 | 1.69 | 4 | 0.75 | 3.25 | 1.09 | 0.82 | 1.88 | 1.05 | 0.94 | 2.19 |
| 1 | 4.88 | 0.62 | 2.00 | 4 | 0.75 | 3.50 | 1.36 | 1.05 | 2.12 | 1.32 | 1.00 | 2.38 |
| 11⁄4 | 5.25 | 0.69 | 2.50 | 4 | 0.75 | 3.88 | 1.70 | 1.38 | 2.50 | 1.66 | 1.00 | 2.50 |
| 11⁄2 | 6.12 | 0.75 | 2.88 | 4 | 0.88 | 4.50 | 1.95 | 1.61 | 2.75 | 1.90 | 1.13 | 2.63 |
| 2 | 6.50 | 0.81 | 3.62 | 8 | 0.75 | 5.00 | 2.44 | 2.07 | 3.31 | 2.38 | 1.25 | 2.69 |
| 21⁄2 | 7.50 | 0.94 | 4.12 | 8 | 0.88 | 5.88 | 2.94 | 2.47 | 3.94 | 2.88 | 1.44 | 2.94 |
| 3 | 8.25 | 1.06 | 5.00 | 8 | 0.88 | 6.62 | 3.57 | 3.07 | 4.62 | 3.50 | 1.63 | 3.06 |
| 31⁄2 | 9.00 | 1.12 | 5.50 | 8 | 0.88 | 7.25 | 4.07 | 3.55 | 5.25 | 4.00 | 1.69 | 3.13 |
| 4 | 10.00 | 1.19 | 6.19 | 8 | 0.88 | 7.88 | 4.57 | 4.03 | 5.75 | 4.50 | 1.82 | 3.32 |
| 5 | 11.00 | 1.31 | 7.31 | 8 | 0.88 | 9.25 | 5.66 | 5.05 | 7.00 | 5.56 | 1.94 | 3.82 |
| 6 | 12.50 | 1.38 | 8.50 | 12 | 0.88 | 10.62 | 6.72 | 6.07 | 8.12 | 6.63 | 2.00 | 3.82 |
| 8 | 15.00 | 1.56 | 10.62 | 12 | 1.00 | 13.00 | 8.72 | 7.98 | 10.25 | 8.63 | 2.38 | 4.32 |
| 10 | 17.50 | 1.81 | 12.75 | 16 | 1.12 | 15.25 | 10.88 | 10.02 | 12.62 | 10.75 | 2.56 | 4.56 |
| 12 | 20.50 | 1.94 | 15.00 | 16 | 1.25 | 17.75 | 12.88 | 12.00 | 14.75 | 12.75 | 2.82 | 5.06 |
| 14 | 23.00 | 2.06 | 16.25 | 20 | 1.25 | 20.25 | 14.14 | 13.25 | 16.75 | 14.00 | 2.94 | 5.56 |
| 16 | 25.50 | 2.19 | 18.50 | 20 | 1.38 | 22.50 | 16.16 | 15.25 | 19.00 | 16.00 | 3.19 | 5.69 |
| 18 | 28.00 | 2.31 | 21.00 | 24 | 1.38 | 24.75 | 18.18 | 17.25 | 21.00 | 18.00 | 3.44 | 6.19 |
| 20 | 30.50 | 2.44 | 23.12 | 24 | 1.38 | 27.00 | 20.20 | 19.25 | 23.12 | 20.00 | 3.69 | 6.32 |
| 22 | 33.00 | 2.57 | 25.25 | 24 | 1.63 | 29.25 | 22.22 | 21.25 | 25.25 | 22.00 | 3.93 | 6.43 |
| 24 | 36.00 | 2.69 | 27.62 | 24 | 1.63 | 32.00 | 24.25 | 23.25 | 27.62 | 24.00 | 4.1 |
ANSI B16.5 flanges are extensively used in industries like oil and gas, petrochemical, power generation, and water treatment. They are crucial for connecting pipes, valves, pumps, and other equipment within piping systems, ensuring secure and leak-proof joints. These flanges are particularly suited for high-pressure and high-temperature applications, making them ideal for refineries, chemical plants, and offshore platforms. Their versatility in accommodating various materials and sizes makes ANSI B16.5 flanges a top choice for industrial and commercial infrastructure projects around the globe.
Yes, we offer custom sizes for ANSI B16.5 Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
