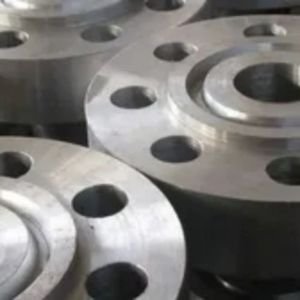

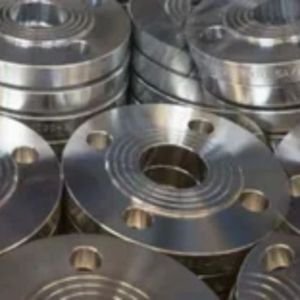

Vishal Flanges, based in Delhi, India, stands out as a reputable manufacturer and supplier of ANSI B16.5 Class 900 flanges. These flanges are specifically designed for high-pressure applications, ensuring they offer remarkable strength, durability, and precision. Committed to meeting international standards, Vishal Flanges guarantees quality and reliability, serving a wide range of industrial needs. With cutting-edge manufacturing techniques and a talented workforce, we deliver robust flange solutions that can handle the rigorous demands of industries like oil and gas, petrochemical, and power generation.
Our ANSI B16.5 Class 900 flanges are made from top-quality materials, including carbon steel, stainless steel, or alloy steel, tailored to meet specific application needs. These flanges are built to endure pressures of up to 900 pounds per square inch (psi) and can withstand high temperatures. They boast impressive mechanical properties, such as high tensile strength, durability, and resistance to wear and corrosion. Their precise design guarantees reliable performance even in the toughest conditions, making them perfect for critical applications.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 900 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Normal pipe size | Outside dia. of flange | Minimum thickness of flange | Overall Length | Bolt Circle | No. and Size of Holes | O.D. of raised face | |||
| Welding neck | Slip-on & socket welding | Lap Joint | |||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 95 | 14.3 | 52.4 | 22.2 | 22.2 | 66.5 | 4 | 15 | 35 |
| 3/4 | 117 | 15.9 | 57.2 | 25.4 | 25.4 | 82.5 | 4 | 19 | 43 |
| 1 | 124 | 17.5 | 61.9 | 27.0 | 27.0 | 89.0 | 4 | 19 | 51 |
| 1-1/4 | 133 | 20.7 | 66.7 | 28.6 | 28.6 | 98.5 | 4 | 19 | 64 |
| 1-1/2 | 156 | 22.3 | 69.8 | 31.8 | 31.8 | 114.5 | 4 | 22 | 73 |
| 2 | 165 | 25.4 | 73.0 | 36.5 | 36.5 | 127.0 | 8 | 19 | 92 |
| 2-1/2 | 190 | 28.6 | 79.4 | 41.3 | 41.3 | 149.0 | 8 | 22 | 105 |
| 3 | 210 | 31.8 | 82.6 | 46.0 | 46.0 | 168.0 | 8 | 22 | 127 |
| 3-1/2 | 229 | 35.0 | 85.7 | 49.2 | 49.2 | 184.0 | 8 | 25 | 140 |
| 4 | 273 | 38.1 | 101.6 | 54.0 | 54.0 | 216.0 | 8 | 25 | 157 |
| 5 | 330 | 44.5 | 114.3 | 60.3 | 60.3 | 266.5 | 8 | 29 | 186 |
| 6 | 356 | 47.7 | 117.5 | 66.7 | 66.7 | 292.0 | 12 | 29 | 216 |
| 8 | 419 | 55.6 | 133.4 | 76.2 | 76.2 | 349.0 | 12 | 32 | 270 |
| 10 | 508 | 63.5 | 152.4 | 85.7 | 115.1 | 432.0 | 16 | 85 | 324 |
| 12 | 559 | 66.7 | 155.6 | 92.1 | 111.1 | 489.0 | 20 | 35 | 381 |
| 14 | 603 | 69.9 | 165.1 | 93.7 | 117.5 | 527.0 | 20 | 38 | 413 |
| 16 | 686 | 76.2 | 177.8 | 106.4 | 127.0 | 603.0 | 20 | 41 | 470 |
| 18 | 743 | 82.6 | 184.2 | 117.6 | 139.7 | 654.0 | 20 | 45 | 533 |
| 20 | 813 | 88.9 | 190.5 | 127.0 | 165.1 | 724.0 | 24 | 45 | 584 |
| 24 | 940 | 101.6 | 203.2 | 139.7 | 184.2 | 838.0 | 24 | 51 | 692 |
ANSI B16.5 Class 900 flanges are extensively utilized in industries that require secure and efficient connections for high-pressure piping systems. They play a vital role in the oil and gas industry, petrochemical facilities, power plants, and refineries. Commonly found in pipelines, valves, and pressure vessels, these flanges ensure leak-proof and long-lasting connections. Their adaptability and dependability make them ideal for both onshore and offshore applications, where safety and performance are crucial for managing high-pressure fluids and gases.
Yes, we offer custom sizes for ANSI B16.5 Class 900 Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
