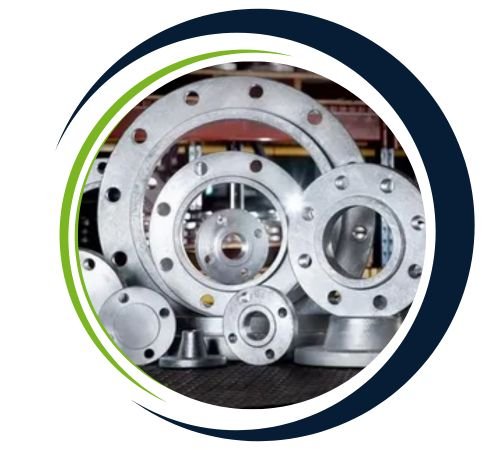

Vishal Flanges, located in Delhi, India, stands out as a leading manufacturer and supplier of ANSI B16.5 Class 1500 flanges. These high-performance flanges are crafted to endure extreme pressures and temperatures, ensuring safe and reliable connections in critical industrial settings. Renowned for their precision engineering and commitment to international standards, Vishal Flanges delivers top-notch products across various sectors. With state-of-the-art manufacturing facilities and a talented team, we are dedicated to providing durable and efficient flange solutions tailored to meet a wide range of operational needs.
ANSI B16.5 Class 1500 flanges are constructed from high-quality materials, including carbon steel, stainless steel, or alloy steel, depending on the specific application. These flanges boast impressive mechanical properties, such as high tensile strength, excellent pressure resistance, and strong thermal stability. Their precise dimensions and superior surface finish guarantee tight seals and reliable performance, even in demanding conditions. Engineered to comply with strict industry standards, they ensure durability and efficiency in high-stress environments.

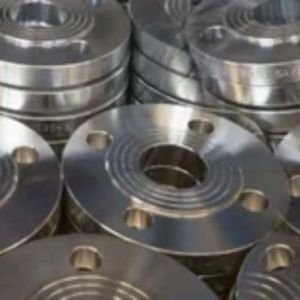

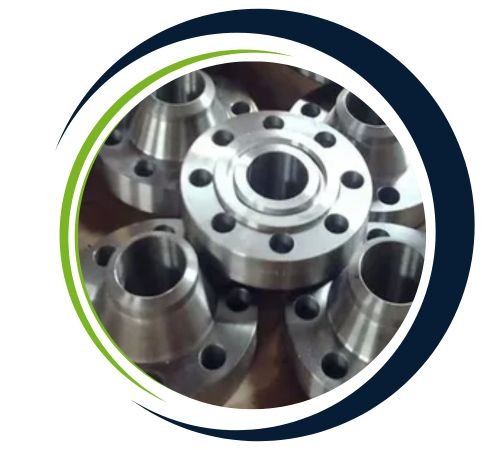

Vishal Flanges, a leading supplier in Delhi, India, offers an extensive selection of ANSI B16.5 Class 1500 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 1500 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Normal pipe size | Outside dia. of flange | Minimum thickness of flange | Overall Length | Bolt Circle | No. and Size of Holes | O.D. of raised face | |||
| Welding neck | Slip-on & socket welding | Lap Joint | |||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 12.1 | 22.3 | 60.3 | 31.8 | 31.8 | 82.5 | 4 | 22 | 35 |
| 3/4 | 130 | 25.4 | 69.8 | 34.9 | 34.9 | 89.0 | 4 | 22 | 43 |
| 1 | 149 | 28.6 | 73.0 | 41.3 | 41.3 | 101.5 | 4 | 25 | 51 |
| 1-1/4 | 159 | 28.6 | 73.0 | 41.3 | 41.3 | 111.0 | 4 | 25 | 64 |
| 1-1/2 | 178 | 31.8 | 82.6 | 44.4 | 44.4 | 124.0 | 4 | 29 | 73 |
| 2 | 216 | 38.1 | 101.6 | 57.2 | 57.2 | 165.0 | 8 | 25 | 92 |
| 2-1/2 | 244 | 41.3 | 104.8 | 63.5 | 63.5 | 190.5 | 8 | 29 | 105 |
| 3 | 267 | 47.7 | 117.5 | 73.0 | 73.0 | 203.0 | 8 | 32 | 127 |
| 3-1/2 | |||||||||
| 4 | 311 | 54.0 | 123.8 | 90.5 | 90.5 | 241.5 | 8 | 35 | 157 |
| 5 | 375 | 73.1 | 155.5 | 104.8 | 104.8 | 292.0 | 8 | 41 | 186 |
| 6 | 394 | 82.6 | 171.4 | 119.1 | 119.1 | 317.5 | 12 | 38 | 216 |
| 8 | 483 | 92.1 | 212.7 | 142.9 | 142.9 | 393.5 | 12 | 45 | 270 |
| 10 | 584 | 108.0 | 254.0 | 158.8 | 177.8 | 482.5 | 12 | 51 | 324 |
| 12 | 673 | 123.9 | 282.9 | 181.0 | 219.1 | 571.5 | 16 | 54 | 381 |
| 14 | 749 | 133.4 | 298.4 | 241.3 | 635.0 | 16 | 60 | 413 | |
| 16 | 826 | 146.1 | 311.2 | 260.4 | 705.0 | 16 | 51 | 470 | |
| 18 | 914 | 162.0 | 327.0 | – | 276.2 | 474.5 | 16 | 73 | 538 |
| 20 | 984 | 117.8 | 355.4 | 292.1 | 832.0 | 16 | 80 | 584 | |
| 24 | 1168 | 203.2 | 406.4 | 330.2 | 990.5 | 16 | 92 | 692 | |
Vishal Flanges’ ANSI B16.5 Class 1500 flanges are extensively utilized in industries that require high-pressure connections, including oil and gas, petrochemicals, power generation, and chemical processing. These flanges are perfect for piping systems that operate under extreme pressures and temperatures, providing secure connections for valves, pumps, and pipelines. Their ability to create leak-proof seals makes them essential for critical operations in both onshore and offshore platforms. Built for durability and performance, these flanges are vital in heavy-duty industrial applications.
Yes, we offer custom sizes for ANSI B16.5 Class 1500 Flanges to meet specific project needs. Our team at Vishal Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@vishalflanges.co.in.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
